Switching

Switch lights, fans, sockets or other appliances.

Directly from wireless controllers, or smartly via the app. Connect the logic of the switches with each other

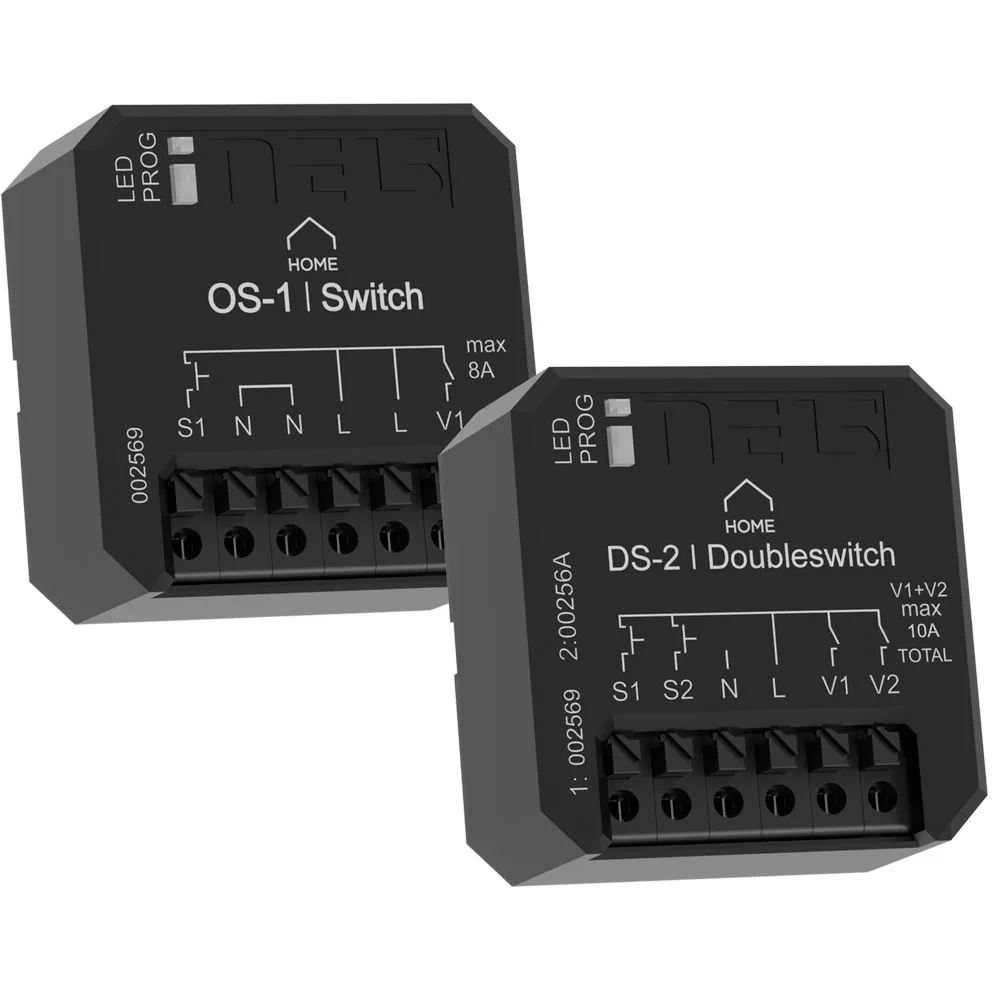

Switch OS-1 / Double switch DS-2

Powerful and long-lasting relay for switching lights, sockets and other household electrical devices.

icon-5-1
6 switching functions on-board
icon-5-2
Screwless terminals for easy intallation
icon-5-3
200 m Professional radio frequency
Zero Cross funcion
icon-5-4
Inputs for external buttons / switches
App control via HUB
Direct communication with other devices
OS-1-DS-2

General

Model

OS-1 / DS-2

Power Supply

110-230V AC

Relay outputs

1/2

Nominal switching capacity

10A 250VAC AC1*
(Total)

HUB requiered

For app control only

Repeating function

yes

Inputs for switches and buttons

1/2

Warranty period

5 years

Expected lifetime

15 years

Country of manufacture

Czech Republic

* 8A for US market

Radio

Communication

RFIO3

Radio Frequency

868-922 MHz

Signal Range (Open Filed)

200 m

Construction

Color

black

Dimensions (mm)

43 × 44 × 22

Protection

IP40

Standards

EN 60730, EN 63044,
EN 301489, EN 300220

That's why iNELS Home will work reliably for you

What can iNELS Home units do without connecting to the Mini Bridge?

icon-1-1
NO NEED
HUB

Direct communicati-on of controllers and detectors with swit-ching and dimming elements.

icon-1-2
GROUP
SCENARIOS

1 controller can control a group of elements of different types, and conversely, 1 element can be con-trolled from several different controllers.

icon-1-3
COMBO
UNITS

Switching and dimming units have inputs to direct co-nnection with existing switches and buttons.

icon-1-4
PRE-INSTALLED
FUNCTIONS

Depending on the type of unit, each of them is already capable of a number of smart functions, such as the selection of a delayed timing command or popular lighting scenarios.

iNELS Home App

TIMING

Through applications you can control units in time scenarios.

icon-2-2
PUSH
NOTIFICATIONS

Thanks to notifica-tions, you will know exactly what is happe-ning in your home and the state of the appli-ances. The wireless elements also report the battery status.

SORTING INTO GROUPS AND ROOMS

Arrange the elements exactly as you need, so that you have con-trol and an overview that is tailored exactly to you.

What the Mini Bridge brings to other units?

CONNECTION TO THE APP AND TO THE CLOUD

Via the Mini Bridge, it is possible to connect all units of the system to the application without the use of WiFi, thus maintaining the maximum connec-tivity of the home Smart Home network

REMOTE
CONTROL

The mini bridge has a powerful relay on it, which you can remo-tely control just like the other elements of the system. And you can choose whether to use a static IP ad-dress or our Cloud

ECOSYSTEMS COMPATIBILITY

Mini Bridge has open communication on
it, which ensures co-nnection with popular Smart Home applicati-ons, such as Apple Home, SmartThings or Home Assistant

Cloud functions

icon-4-1
CLEAR DASHBOARD

Web application, suitable for control and overview on PC or large screen.

CONSUMPTION AND EVENTS GRAPHS

Simple graphs showing consumption, temperature or device behavior over time.

icon-4-3
MULTI-LEVEL
LOGIC

Additional logic with conditioning for all devices and combi-nations of controllers and detectors.

icon-4-4
OS-1-DS-2

Good to know

Switches are used for turning lights, appliances, outlets, ventilation, heating sources, motors, and other things on or off.

Number of units paired to one switch isnt limited

You can pair 32 controllers to each unit

No, you can set it manually

Yes, time scenarios and switching logic can be set in the app
