Detectors
Do you want to secure your home, or just add the right automation for your lights or blinds?
Our sensors are there for both!

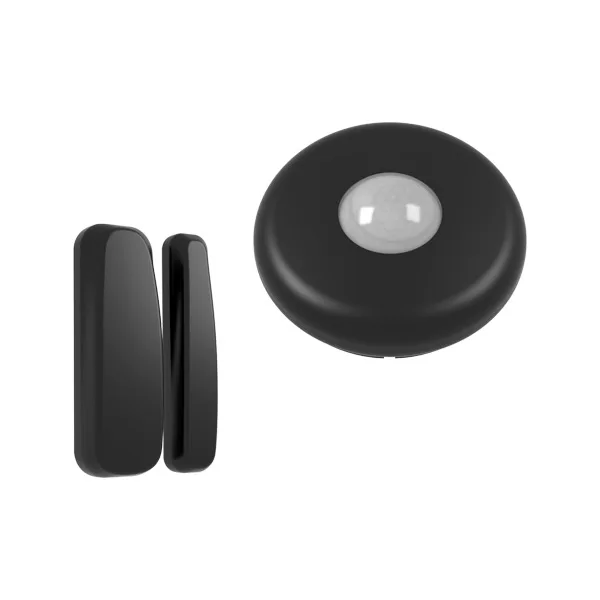

PIR Detector PD-1
Wireless long distance PIR detector for
security and home automations.
| General | |
|---|---|
| Power Supply | 2× 1.5 V AA batteries |
| Indication | Drained battery |
| Working temperature | -10 to + 50 °C |
| HUB requiered | MB-1 |
| Protection Features | Anti-Sabotage |
| LED indication | optional shutdown to |
| Warranty period | 5 years |
| Expected lifetime | 15 years |
| Country of manufacture | Czech Republic |
| Radio | |
|---|---|
| Communication | RFIO3 |
| Radio Frequency | 868-922 MHz |
| Signal Range (Open Filed) | 200 m |
| Construction | |
|---|---|
| Color | black / white |
| Dimension (mm) | 46 × 105 × 43 |
| Protection | IP40 |
| Standards | EN 60730, EN 63044, EN 301489, EN 300 220 |
Window/Door detector WDC-1
For universal installation on windows and doors. Provide detection and automations in iNELS Home ecosystem.
| General | |
|---|---|
| Power Supply | 1× 3 V CR 2032 battery |
| Indication | Drained battery |
| Working temperature | -10 to + 50 °C |
| HUB requiered | MB-1 |
| Protection Features | Anti-Sabotage |
| LED indication | optional shutdown to |
| Warranty period | 5 years |
| Expected lifetime | 15 years |
| Country of manufacture | Czech Republic |
| Radio | |
|---|---|
| Communication | RFIO3 |
| Radio Frequency | 868-922 MHz |
| Signal Range (Open Filed) | 200 m |
| Construction | |
|---|---|
| Color | black / white |
| Dimension – sensor (mm) | 25 × 75 × 16 |
| Dimension – magnet (mm) | 15 × 75 × 14 |
| Protection | IP40 |
| Standards | EN 60730, EN 63044, |
Black or white? Its up to you!
Good to know
PD-1 can be connected to any switch unit like OS-1, DS-2 or directly do Mini Bridge relays
The number of switches you can connect to a motion detector is not limited. Additionally, you can set different delays on various switch elements, creating staircase control zones and combine it with buttons.
– No, you will need 1 detector for the door and another for the window.
-Sensors have a security function, as they can detect the presence of an unknown guest. They can also be used to turn on lights or raise blinds.
